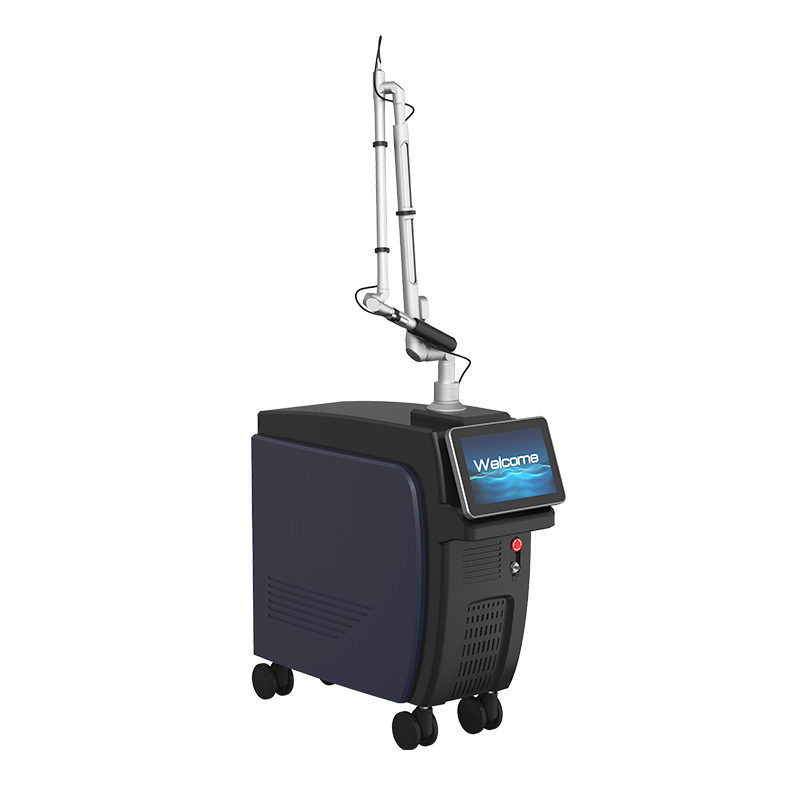

Picosecond Laser Skin Therapy Equipment
PL-268
3 wavelengths: 532nm/755nm/1064nm
2 changeable handpieces: Honey Comb probe/Big Spot Size probe
Picosecond Laser Skin Therapy Equipment
Theory
Using the light blasting effect, the high-intensity laser penetrates the epidermis and can reach the pigment clusters in the dermis layer. Because the energy has a short time of action and the energy is extremely high, the pigment clusters will quickly expand and explode after absorbing the high energy in an instant. After the particles are swallowed by macrophages, excreted, and the pigment gradually fades and disappears.
The picosecond laser with ultra-short pulse width can effectively produce photo-mechanical effects and break the pigment particles into small fragments.
Compared with nano-scale Q-switched laser, picosecond laser only needs lower energy to achieve the effect.
It takes less number of treatment courses to achieve better treatment effect.
Stubborn green and blue tattoos can also be effectively removed.
Treated but incomplete tattoo removal, picosecond laser can also treat.
In the mechanism of pigment particle destruction, there are mainly photothermal and photomechanical effects. The shorter the pulse width, the weaker the effect of converting light into heat. Instead, the photomechanical effect is used, so picoseconds can effectively crush the pigment particles, resulting in better pigment removal.
Application
Remove chloasma, freckles, age spots, brown mole spots, acne marks and other endogenous pigments, wash eyebrows, tattoos, moles, birthmarks, remove Ota moles, etc.

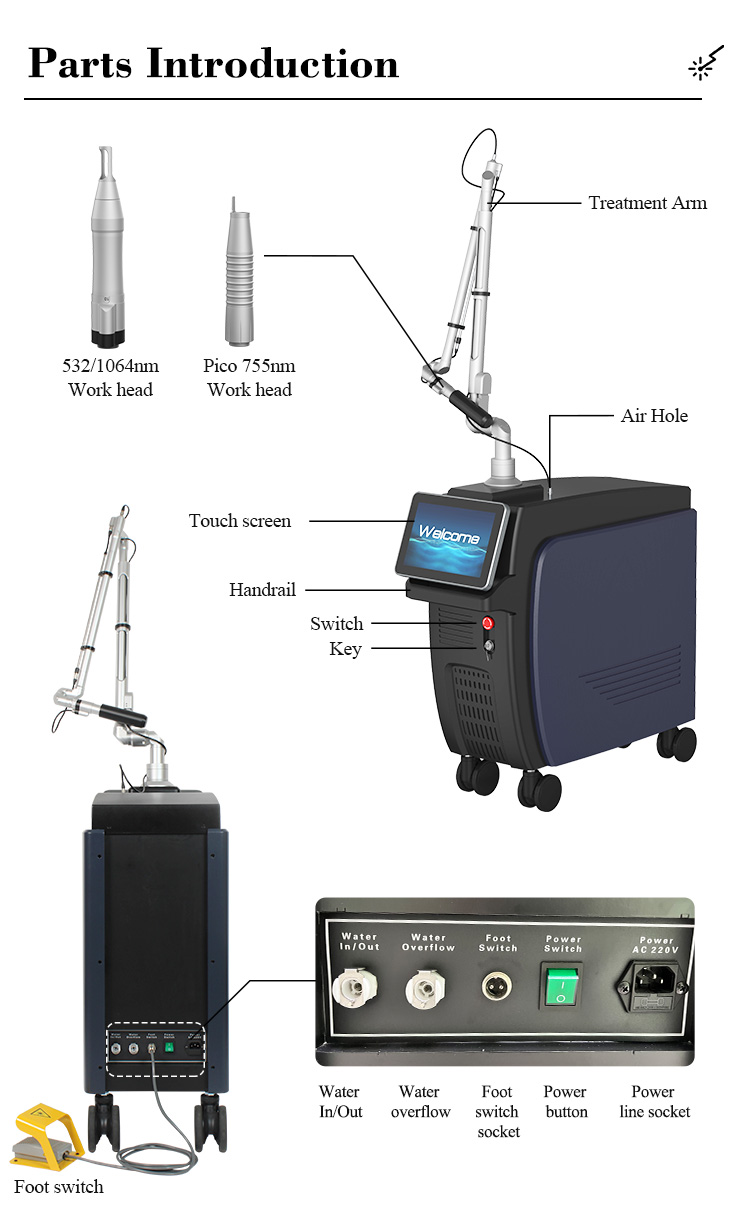

Parts Introduction

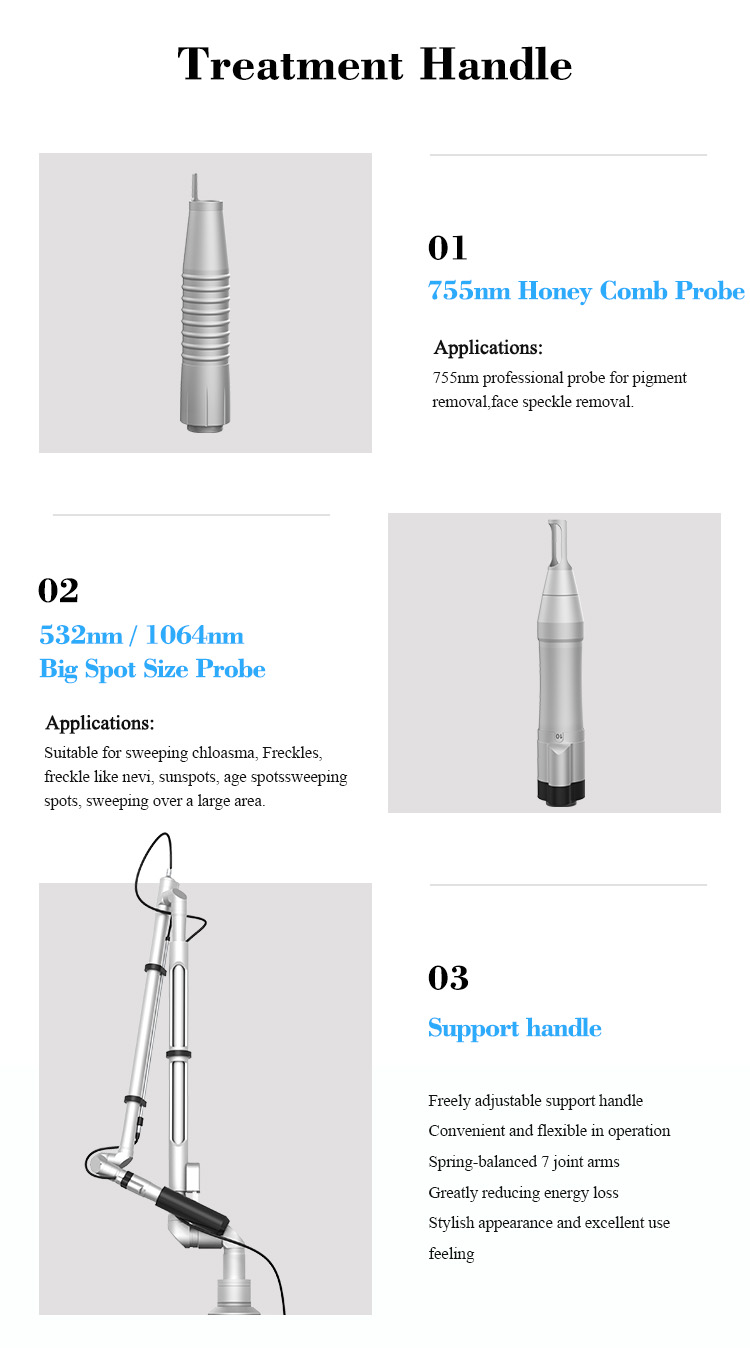

Handpiece Introduction
Parameters
Input Power | 2000W |
Wavelength | 1064nm, 755nm, 532nm |
Frequency | 1-10Hz |
Power | 200mj-2000mj |
Spot Size | 2-10mm (adjustable) |
Screen | 12inch touch screen |
Cooling System | semiconductor, water cooling |
Voltage | 110V/220V |
N. W./G. W. | 64kg/ 91.5kg |
Package Size | 108cm*45cm*101cm |
Handle Size | 96cm*39cm*21.5cm |

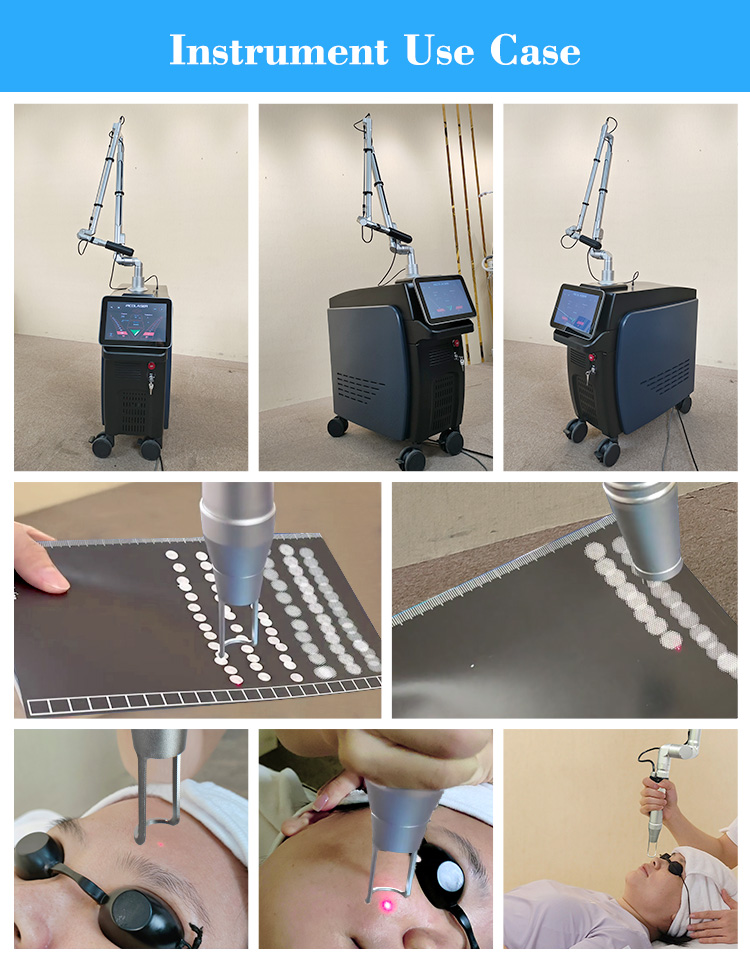

Operation
Q & A
Q: Is it painful during treatment? How long does it take?
A: The treatment process will be hot, and the place in which the pigment distribution will feel will more apparent. According to the treatment of the adaptation, the operator will recommend the use of local anesthetic ointments and cold blowers to reduce discomfort. General treatment time is approximately 5-15 minutes, subject to the size of the treatment area and skin problems.
Q: It has been treated many times. Will it leave scars if continue treatment?
A: The technology only needs to use generally laser doses to achieve effective treatment, tissue accepts lower dose stimulation, and the traumatic is relatively reduced, and it is not easy to generate wounds to cause scars.
Q: Is the pico laser washing tattoo good? Will it stay?
A: The current efficacy is particularly remarkable to use the Pico laser to wash tattoo, which does not cause heat damage to the surrounding tissue, so it will not leave scars.
Q: Will there be anti-black problems with picosecond laser treatment?
A: Pico laser utilizes the focus energy probe of "honeycomes instant lens", can reduce tissue excessive stimulation, plus the instantaneous high energy of the Pico laser (Q-switch) to crush the pigment particles, decrease heat injury, protect tissue melanocytes from excessive stimulation, which can significantly reduce the stimulation of normal cells and lengthy flush.
