Multi-functional Portable Cryolipo Body Slimming Equipment
CTL29 PLUS
Multi-functional Portable Cryolipo Body Slimming Equipment
Principle
Cryolipolysis (Fat Freezing)
Through cooling technology, triglyceride in fats will be converted into solid in particular low temperature. Fat cells premature aging and death. Through the normal metabolic processes to decrease the fat layer and achieve the purpose of partially melting fat.
Lipolaser
Lipolaser is a latest technology for weight loss.
Laser is irradiated to parts of the body, producing photochemical reactions, then through body’s metabolism and energy consumption to reduce the excessive fat.
Cavitation
Stubborn cellulite can be effectively treated by Cavitation.
Cavitation ultilizing intense sound wave (reaches 40 KHz) causes violent vibration within fatty cell. Cellulite is bombarded with strong force, causing fatty acid decomposition and enhancing blood circulation. Finally fat acid is discharged outside the body through lymphatic drainage, thus achieving the weight lost and the lush body beautification effects.
RF
Radio frequency radio waves enter the deep part of the skin, and the internal natural resistance movement causes the skin to heat up. The use of dermal collagen cellulose immediately produces a contraction principle at 45-60degree, which can smooth wrinkles, tighten the skin and delay skin aging.

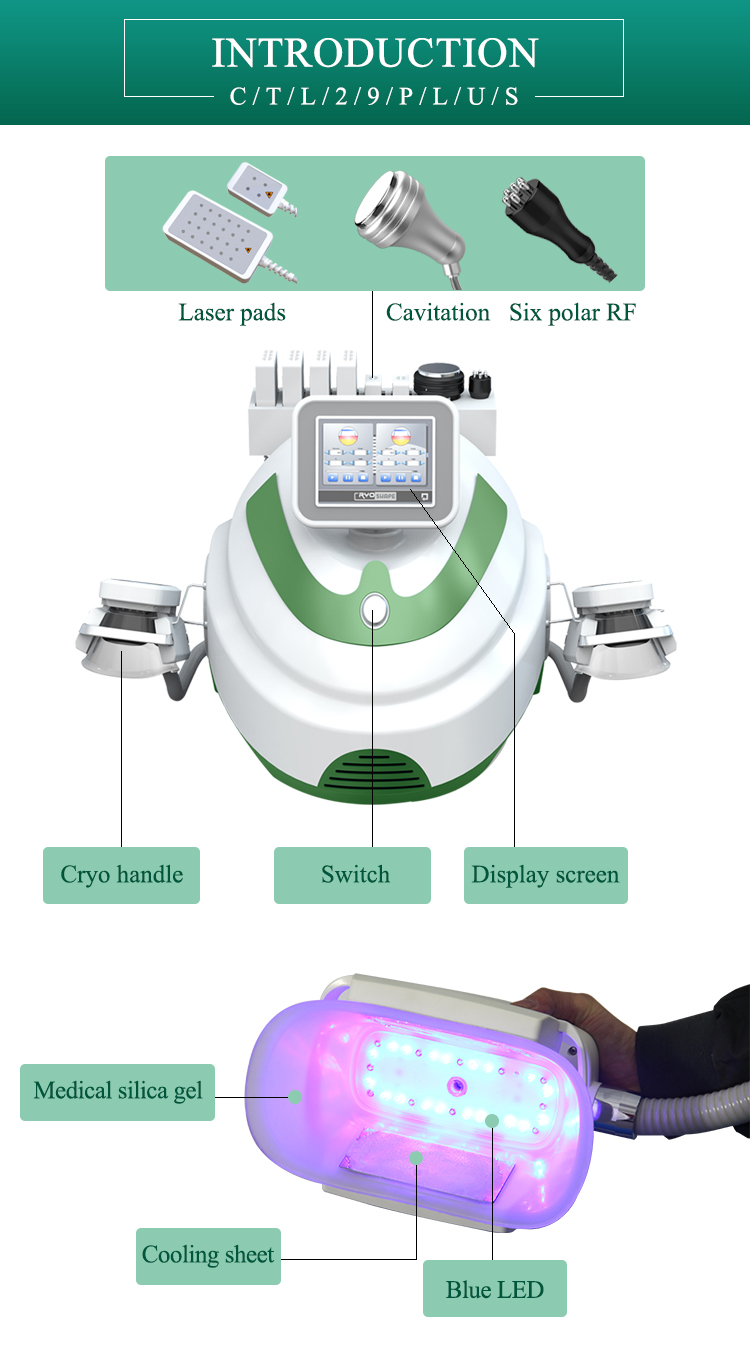

Machine Introduction

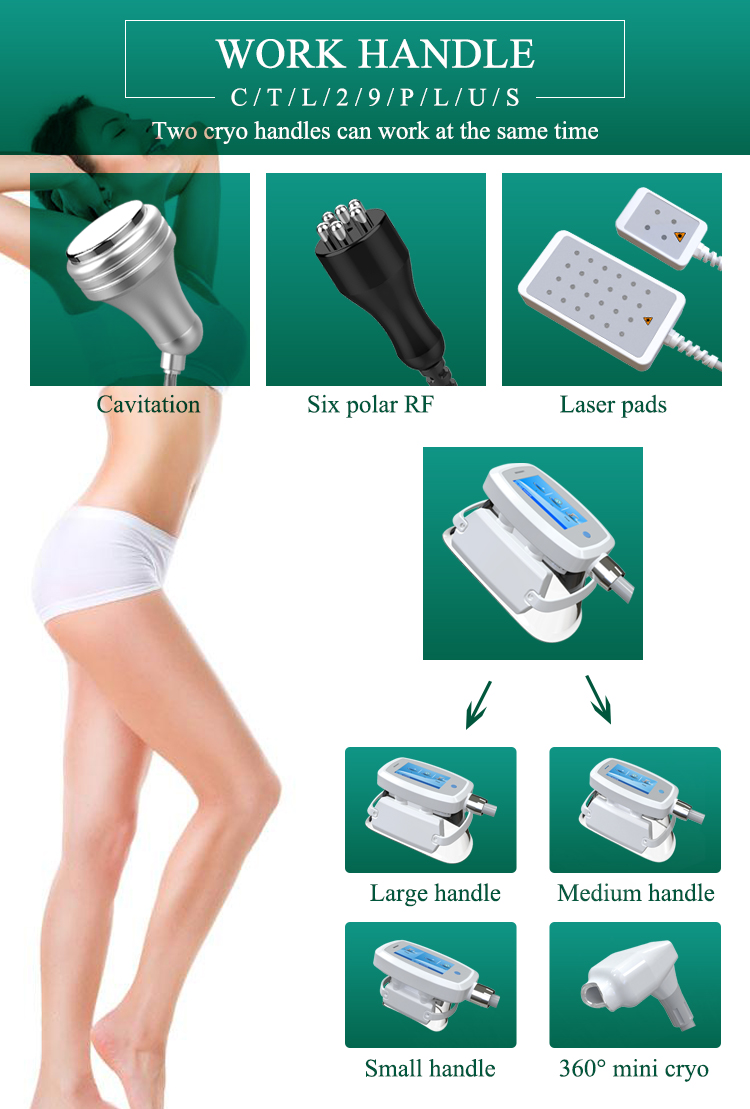

Handles Introduction
Treatment Areas for Cryo Handles
Parameters
Voltage | 220v/110v; 50Hz-60Hz |
Screen | 12inch touch screen |
Mitsubishi classification | Electrical Class II, Type B applied part |
Pads | 6 pcs,4 big pads and 2 small pads |
Laser type | low intensity diode laser |
Laser source | Mitsubishi diode laser ML101J27 |
Mitsubishi Wavelength | dual wavelength, 660nm and 980nm |
Laser energy | 130mW~350mW (pulse) |
Quantities of lamps | 104 pcs |
Mitsubishi Ingress Rating | IPXO |
Lipolaser cooling requirements | Air cooled |
Cryo handles | 2pcs |
Cooling device output temperature | 5℃~ -16℃ |
Cooling device output pressure | 0-100Kpa |
Cooling liquid | pure water, with 9L |
Default working time | 0-60 minutes |
Power consumption | ≤1000W |
Cavitation | 35-40KHz |
RF frequency | 5MHz |
Vacuum output pressure | 0-100Kpa |
Preparation before Treatment
Before using this machine, check the fat thickness with the fat callipers to ensure whether the customer can use the machine. People with thin fat layers must not use fat freezing machines, otherwise it will endanger human health.
Antifreeze membrane must be used when using this machine, otherwise frostbite may occur.
The vacuum power should be adjusted according to the customer's tolerance, starting from the lowest value.
For initial use, the freezing temperature range should be set between 0 ° C and -5 ° C.
Ensure the water tank is full of 9L water for cooling system.
The power line has been installed correctly.
The hand piece is well connected with the equipment.
Keep the power switch situation “ON”.
Operation
Shipments
